Hyb-Man to transform production of smart electronic systems

05 Apr 2018


Paris, 5 April 2018 – The EUREKA PENTA funding programme, managed by AENEAS, today highlights the Hyb-Man project. The Hyb-Man (Hybrid 3D Manufacturing of Smart Systems) project is developing additive manufacturing methods (also known as 3D printing) to enable flexible, first-time-right production of smart systems for lighting and automotive applications. Partners in Hyb-Man aim to develop 3D manufacturing as a core production technology. This will be combined with automated assembly and integration of electronic parts, design rules, in-line testing and quality monitoring. Together, these will make the entire production process more flexible. Manufacturers will be able to respond rapidly to changing market demand, expand their product diversity, offer cost-effective manufacturing of small product runs, and produce designs and form factors currently not possible.

The market for electronic products is evolving, with growing demand from manufacturers for customised and semi-bespoke solutions. However, up to now, the emphasis has been on mass production of standardised components and assemblies. Electronic products are made from separate devices and components, in a series of semi-automated processes, and then tested as a complete assembly. This requires dedicated production lines and specialised tooling. In addition, such manufacturing often relies on low-wage economy labour and transportation of parts around the world. Hyb-Man will transform this situation by basing core production on the digital processes of 3D printing which eliminate the need for dedicated manufacturing lines and product-specific tools.

Philips-Lighting-and-Bosch

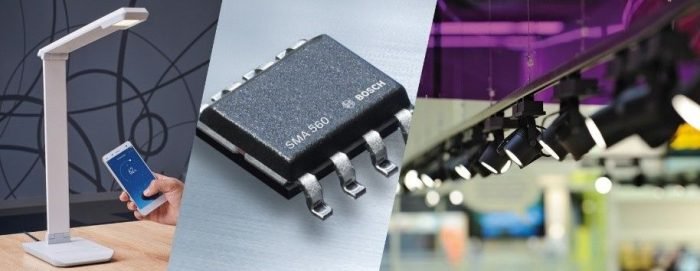

Photo credit: Philips Lighting and Bosch

The project has major potential for European industry and involves partners from across the entire electronic components and systems value chain. Hyb-Man methods will boost Europe’s ability to compete in the global market for electronics manufacturing services, which was worth €1,200 billion in 2014 and is expected to grow to €1,600 billion in 2019[1]. They will enable European industry to bring back production from others part of the world, as well as reducing environmental impact and increasing opportunities for recycling. Europe’s manufacturers will also be able to respond to the increasing demand for embedded electronics[2], and the emergence of printed electronics and hybrid systems (printed and silicon-based components). These benefits are likely to be significant: just 1% of the additive manufacturing market is predicted to be worth €200 million in 2020[3].

The benefits from the cross functional cooperation between different organisations in Hyb-Man is already clear in the first year of the project. Product specifications from end users were translated to technology requirements and first demonstrators are produced to investigate hybrid manufacturing challenges.

hybrid manufactured electronic structures

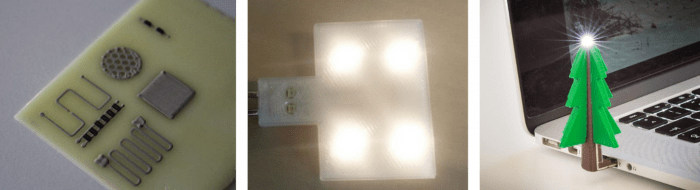

Examples of hybrid manufactured electronic structures: in-plane, embedded and 3D structures. Photo credit: Bosch, Philips Lighting and Neotech

An important aspect of the project is to increase product and process understanding by modelling and experimental validation. A Design Structure Matrix approach is used to visualise and optimise the relations between product properties, components and functionalities. For a more detailed understanding of process influences on product properties, a method has been developed to create simulations models automatically from the code used to drive the FDM (Fused Deposition Modeling) printer. The created models have demonstrated that in a FDM process, the orientation of the filaments have a significant effect on the local stiffness.

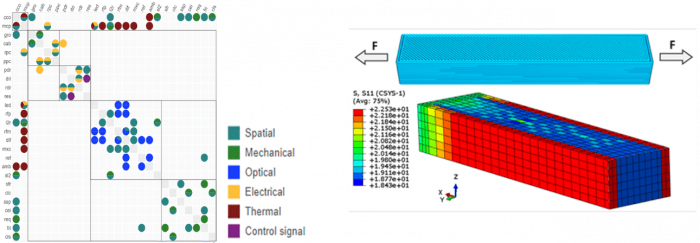

Design structure matrix and stress models

Design structure matrix and stress models – Photo credit: TU Eindhoven and Reden
